Wednesday, December 6, 2023

What are the Advantages of Tilt Sensor




The tilt sensor is a very accurate measuring tool for small angles. It can measure the inclination of the measured plane relative to the horizontal position, the parallelism and perpendicularity of the two components. It has become an indispensable and important measuring tool in bridge construction, railway laying, civil engineering, oil drilling, aviation and navigation, industrial automation, intelligent platform, mechanical processing and other fields.

1. The principle of tilt sensor

The working principle of the inclination sensor is based on microelectromechanical system (MEMS) technology and accelerometer principle. It is equipped with tiny accelerometers, and by using gravity, inertia and other mechanical principles, to detect the object’s tilt angle relative to the Earth’s horizontal plane.

When the object is at rest, the tilt sensor is subjected to gravity, which causes the accelerometer to align with the vertical direction of the Earth. When the object tilts, the direction of the accelerometer changes accordingly, resulting in an electrical output indicating the angle and direction of the object’s tilt.

2. Advantages of tilt sensor

The main benefits of tilt sensors include:

2.1 High Precision

The tilt sensor adopts MEMS technology, which has the characteristics of high precision, high stability and low noise, and can realize the high precision measurement and control of the tilt angle of the object. ER-TS-12200-Modbus is a high-precision wireless inclination sensor, its accuracy can reach 0.001°, using industrial MCU, three-proof PCB board, imported cables, wide temperature metal shell and other measures, its industrial design has extremely high measurement accuracy and anti-interference ability. It is suitable for remote real-time monitoring and analysis of industrial sites, dilapidated buildings, ancient buildings, civil engineering, tilt deformation of various towers and other needs.

2.2 Compact and Lightweight

The tilt sensor is small in size, light in weight, easy to install and carry, and is suitable for various occasions and environments. ER-TS-32600-Modbus its volume is 94*74*64mm, weight is only 460g, very easy to install and carry. Is an ultra-low power consumption, small volume, high-performance wireless inclination sensor, it uses lithium battery power, based on the Internet of Things technology Bluetooth and ZigBee(optional) wireless transmission technology, it meets the needs of users in industrial applications without power supply or real-time dynamic measurement of object attitude angle.

2.3 High Reliability

The tilt sensor has high vibration resistance, impact resistance, water and dust resistance, and can run stably in complex environment for a long time. For example, the ER-TS-3160VO, which has a seismic resistance higher than 20000g, is adopted IP67 protection grade, it has the characteristics of strong shock and vibration resistance, especially suitable for a variety of harsh industrial environments.

Summary: With the continuous development of technology, inclination sensors will have wider prospects and advantages.

1. High precision and stability: With the continuous improvement of measurement accuracy and stability requirements in various fields, the future development direction of inclination sensors will be to improve the accuracy and stability of induction components.

2. Multi-functional: the inclination sensor will gradually develop in the direction of multi-functional, such as integrating the functions of gyroscopes, magnetometers and other sensors to achieve the measurement of a variety of parameters.

3. Intelligent: inclination sensor will be combined with artificial intelligence, internet of things and other technologies to achieve intelligent perception and data processing, improve application efficiency and user experience.

4. Miniaturization: In order to meet the application needs of some special scenarios, the volume of the inclination sensor will gradually shrink and develop in the direction of miniaturization.

5. Wide application: With the continuous progress of inclination sensor technology and the expansion of application scenarios, its application in various fields will be more extensive, bringing more convenience to people’s life and work.

Brief Introduction of Accelerometer




An accelerometer is an instrument that measures acceleration. Acceleration measurement is an important subject in engineering technology. When the object has a large acceleration, the object and the instruments and equipment carried by it and other objects without relative acceleration are subjected to forces that can produce the same large acceleration, that is, dynamic loads. To know the dynamic load, you need to measure the acceleration.

There are many types of accelerometers. Micro-mechanical accelerometers, also known as silicon accelerometers, are now widely used. The principle of sensing acceleration is the same as that of general accelerometers. According to the different reading elements, micro-mechanical accelerometers are classified into piezoresistive accelerometers, capacitive accelerometers, resonant beam accelerometers, and electrostatic force balanced accelerometers. The micro-mechanical accelerometer is small in size, easy to install, simple in measurement method, low in cost and strong in anti-overload capability, and satisfies the requirements for the structure and space limitation of the micro-mini aircraft.

Accelerometers consist of test masses (also called sensitive masses), supports, potentiometers, springs, dampers, and housings.  The detected mass is constrained by the support and can only move along the axis, which is often called the input axis or the sensitive axis. According to the number of input shafts, there are single-axis, dual-axis and triaxial accelerometers.

With the development of MEMS technology, inertial sensor is one of the most widely used MEMS devices, and micro-accelerometer is an outstanding representative of inertial sensor. The theoretical basis of the microaccelerometer is Newton’s second law, according to the basic principles of physics, within a system, the speed cannot be measured, but its acceleration can be measured. If the initial velocity is known, the linear velocity can be calculated by integrating, and the linear displacement can then be calculated. Combined with a gyroscope (used to measure angular velocity), the object can be precisely positioned. The high-precision MEMS accelerometer ER-MA-5 has a bias stability of 5 ug and a monthly bias repeatability of 100-300 ug.

Application

Car safety system

Accelerometers play an important role in automobile safety system. For example, when a car is in a collision, the accelerometer can detect changes in the vehicle’s acceleration and send signals to the airbag system to inflate it at the appropriate time, protecting the driver and passengers. In addition, accelerometers can also be used in vehicle stability control systems to help vehicles in emergency situations. Keep it steady.

Aerospace

Accelerometers are also widely used in the aerospace field. During a rocket launch, for example, an accelerometer can measure changes in the rocket’s acceleration to help control the trajectory of the rocket. In addition, the accelerometer can also be used in the aircraft’s autopilot system to help maintain stability.For example, the ER-QA-03A accelerometers commonly used in the aerospace field have a  bias stability of 10-50μg, and the Scale factor repeatability is 15-50ppm.

The existing problems and development trend

The advancement of MEMS technology and the improvement of technological level also bring new opportunities to the development of micromechanical accelerometers. By understanding the research dynamics of micromechanical accelerometers at home and abroad, there are several development trends of micromechanical accelerometers in the future:

1. The  micromechanical  accelerometer with high resolution and large range has become the focus of research. Because the inertial mass block is relatively small, the inertial force used to measure acceleration and angular velocity is correspondingly small, and the sensitivity of the system is relatively low, so it is particularly important to develop a high-sensitivity accelerometer.

2. The development of multi-axis accelerometers has become a new direction. The inertial measurement combination has six output variables, three of which are mutually positive accelerations on the X, Y, and Z axes. There have been literature reports on the development of triaxial micro-silicon accelerometers, and the methods used are different, but its performance is still a long way from practical, and the structural design of multi-axis accelerometers is still a difficult point.

3. small temperature drift, small hysteresis effect has become a new performance target. The accuracy of micromachined accelerometers can be greatly improved by selecting suitable materials, adopting reasonable structure and applying new low-cost temperature compensation link.

If you want to get more details about quartz-accelerometer, pls visit https://www.ericcointernational.com/accelerometer/quartz-accelerometer/

For more information, please feel free to contact info@ericcointernational.com

If you want to know more about quartz accelerometers or purchase, please contact me through the following ways:

Email : info@ericcointernational.com

Web: https://www.ericcointernational.com/accelerometer/quartz-accelerometer

Whats app:13992884879


 What sensors are inside the IMU and how do they work?

Inertial measurement units typically consist of three different types of sensors. The first type of sensor is an accelerometer, which measures acceleration, or the rate at which an object accelerates or decelerates. While there are many different sensor technologies for accelerometers, by far the most common for wearable applications is MEMS (microelectromechanical systems). MEMS are sensor systems composed of electrical and mechanical components, typically etched from micron-sized silicon.

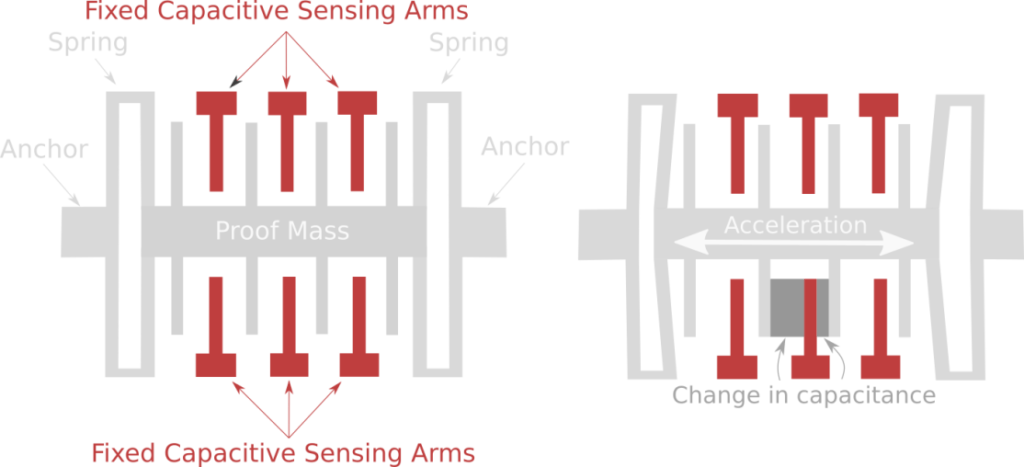

Whenever the MEMS accelerometer experiences acceleration, the proof mass also experiences that acceleration. An etched spring set resists this acceleration. Using Hooke’s law (spring force is proportional to the distance the spring is compressed) and Newton’s second law (force is proportional to acceleration), check that the distance a mass moves is proportional to the acceleration it experiences (see figure below). This movement is sensed using the electrical properties of capacitance, which is related to the distance between two conductors. A set of electronics is then able to measure the change in capacitance, calibrate the signal, and further process it to give acceleration.

The second type of sensor in an Inertial measurement unitis a gyroscope, which measures angular velocity, or the speed and direction of an object’s rotation or spin. Gyroscopes also typically use MEMS technology, although they are more complex than MEMS accelerometers. The main physical phenomenon used in gyroscopes is the Coriolis effect, which describes the forces involved when an object moves in a rotating reference frame.

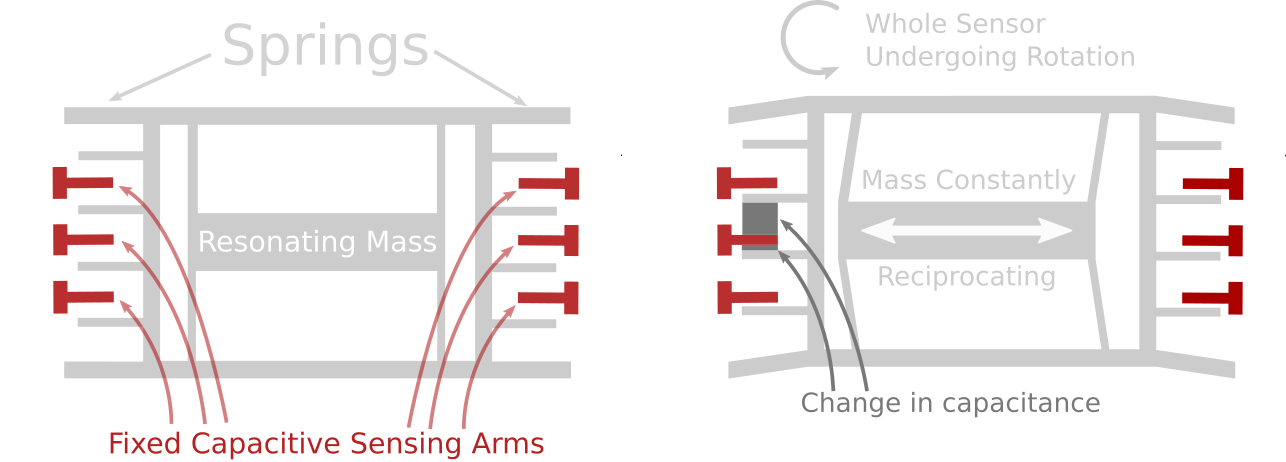

MEMS gyroscopes have masses that reciprocate at a constant frequency. During the rotation of the gyroscope, due to the Coriolis effect, the mass will induce a force perpendicular to the direction of the reciprocating motion. This force is counteracted by an etched spring and sensed by a capacitive sensing arm such as an accelerometer. Signal processing electronics then process the change in capacitance relative to the reciprocating motion of the resonant mass (see figure below).

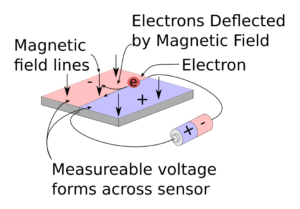

The final sensor commonly found in Inertial measurement units is a magnetometer, which measures the strength of a magnetic field and acts somewhat like a digital compass. Most magnetometers use the Hall effect to measure magnetic field strength. The basic premise of a magnetometer is that electrons moving in a conductor are deflected by the magnetic field to which the conductor is exposed. When charges pass through a conducting plate in a magnetic field, the magnetic field deflects the electrons to one side of the conducting plate. As more negative charge builds up on one side of the plate and more positive charge builds up on the other side of the plate, there is a measurable voltage between the two sides of the plate that is proportional to the strength of the magnetic field.

To learn more about IMU please click the link below
website:https://www.ericcointernational.com/inertial-measurement-units
Email: info@ericcointernational.com
Wechat: 13992884879
WhatsApp: +8613992884879

Tuesday, December 5, 2023

Ericco’s Tilt Sensor Successfully Realizes Three Screen Display




Ericcos sensor R & D department successfully achieved the tilt sensor data in the mobile phone screen, touch screen and computer screen display at the same time, it is reported that this is the first time to achieve the domestic attitude angle sensor data in the three terminals at the same time display, representing the domestic industry data display and control technology.

A major feature of the three screens is that the three terminals can be operated as the control terminal, can read the historical data detected by the tilt sensor, can be downloaded and stored through the U disk, can achieve the observation data curve, can set the relative zero (such as ER-TS-3160VO tilt sensor), etc., powerful, easy to control.

Ericco sensor R & D department in the high-precision sensor design, dynamic sensor research and development, digital display and control technology and other fields to pursue excellence, courage to explore, continuous innovation.

If you want to learn more about tilt sensors or buy

Please contact me in the following ways:

Email: info@ericcointernational.com

Whatsapp: 13992884879

Features of Quartz Flexible Accelerometer




With the development of low-cost inertial systems, a new type of non-liquid floating so-called dry accelerometer began to appear in the mid-1960s. Because this instrument uses flexible support technology, it is called quartz flexible accelerometer, and its structure and process are greatly simplified. This kind of quartz flexible accelerometer has been widely used in various modern inertial systems.

Quartz flexible accelerometer with high precision, high stability, high temperature, small size and so on, is the physical sensitive measurement control products, including acceleration, speed, distance, swing, vibration, tilt, etc. According to these characteristics are used for inertial navigation and guidance.

So what are the features of thequartz flexible accelerometer?

1. The flexible strut is made of whole quartz material, without hysteresis, friction, elastic aftereffect, aging and deterioration not affected by temperature

2. It does not require temperature control to match the properties of the quartz material with the low expansion alloy.

3. It is not affected by temperature change by using the gas film damping

4. The signal is insulated from the shell so that the work does not cause influence and interference.

5. The torque device is used as magnetic steel for the push-pull of the torque device. Therefore, the magnetic stability and the torque rate are large, the time constant is small, and the thermal stability is good.

6. The differential capacitive sensor has a good shielding method because of its small size and high sensitivity

7. The design of servo circuit is advanced, integrated and reliable

8. The power level constant current output can change the sampling resistance to adjust the scale factor in the larger range

9. A large amount of adhesive technology has good reliability and environmental resistance, so it has high requirements for adhesive materials and adhesion process

10. In the servo circuit, the double voltage power supply, the triangular wave transmitter and the various terminal terminals are used for self-check, offset compensation and calibration, so it is convenient to use.

The quartz flexible accelerometer uses high-quality quartz crystals to achieve high precision acceleration measurement with extremely high reliability and stability. Its special flexible construction enables it to adapt to high acceleration applications under various environmental conditions, such as high temperature, high pressure and high vibration environments. For example, High Performance Quartz Accelerometer ER-QA-03 A bias repeatability :10-50ug, scale coefficient repeatability :15-50ppm, Class II nonlinear repeatability :10-30μg/g2, and can work at -45°C~85°C environment.

In addition to being widely used in aerospace and military fields, quartz flexible accelerometers are also widely used in automotive, medical and scientific research fields. In the automotive sector, they can help automakers improve the performance and safety of their vehicles while improving their fuel efficiency. In the medical field, quartz flexible accelerometers can be used to monitor and diagnose human movement and physiological processes. In the field of scientific research, they can be used to study earthquakes, crustal movements, cosmology, and microgravity environments.

Installation Method and use of Tilt Sensor




The tilt sensor is a kind of attitude angle sensor, which is mainly used in the level detection of the state of the object, and it also has the measurement of the angle. Front inclination sensors are mainly divided into several categories, there are single-axis tilt sensor and dual-axis tilt sensor, and the use of tilt sensor principle made of tilt meter.

The selection of inclination sensor is relatively concise for the sensor, as far as the dual-axis inclination sensor is concerned, it has many characteristics, and the product is only the measurement of a small angle, and in the same environment

They have different personalities. When choosing the inclination sensor, we must first of all according to your measurement environment, the harsh environment and size requirements must consider whether to use the protection of the shell. Secondly, the measurement accuracy and range of the inclination sensor are considered, in general, the biaxial inclination sensor can be selected in 360 degrees, and the measurement accuracy and output are based on the data value. When choosing an inclination sensor, it is important to pay attention to the environmental problems you use, which will affect the measurement effectiveness of most inclination sensors in different environments, and even some inclination sensors will lose their effect in a certain environment.

ER-TS-12200-Modbus Tilt sensor installation is a certain skill, the general tilt sensor will have a built-in zero adjustment, the user can customize the zero adjustment button according to the requirements, so as to realize the current set of angle zero performance. Before the installation of the inclination sensor, it is necessary to determine your installation position and what angle you need to measure is relative to which plane, for example, in the relative angle of a plane, the installation only needs to fix the sensor in a certain plane, and the zero button is used to achieve zero clearing performance before measurement, so that the main character is convenient to read the angle and reduce the unnecessary error.

If you want to learn more about tilt sensors or buy

Please contact me in the following ways:

Email: info@ericcointernational.com

Whatsapp: 13992884879



Monday, December 4, 2023

Current status and development trends of MEMS IMU


The MEMS sensor market is expanding rapidly, and MEMS technology is changing with each passing day. As the demand for MEMS sensors continues to grow, new innovative MEMS sensors will emerge and drive market growth. MEMS IMU has changed the development trend of the sensor industry with its small size, low power consumption, and high precision. It is manufactured using micromachining technology and can mass-produce small and complex devices. Its market is growing rapidly and is expected to reach US$21.145 billion by 2031, with a compound annual growth rate of 6.85% from 2023 to 2031. Can be used in multiple industries, such as oil logging, aerospace, drones, mining, surveying, etc., even in the fields of autonomous driving and medical care. In the field of oil logging, in the aerospace field, MEMS IMU is used in navigation systems, flight control systems and environmental control systems. In the mining and surveying world, MEMS IMUs are used in mining equipment and surveying vehicles. In the automotive field, MEMS IMUs are used in airbag deployment systems, anti-lock braking systems and tire pressure monitoring systems. Additionally, MEMS IMUs can be used in implantable medical devices, drug delivery systems, robotics, and more.

If you want to know more about imu's products, please click the link below to contact us, and we will have professional personnel connect with you.



Web:https://www.ericcointernational.com/inertial-measurement-units

Email: info@ericcointernational.com

Whatsapp: 13630231561

WeChat13992884879



High-precision IMU is coming to help in the fields of land, sea and air

  High-precision IMU is now widely used in many fields of sea, land and air. It can provide real-time and accurate information on the carrie...
